Dolli-9S

Recessed for outdoor and underwater applications

Ø85 x H70 9W

12435

Order code : Dolli-009S27020ALB0000

Color
Optics

Technical data

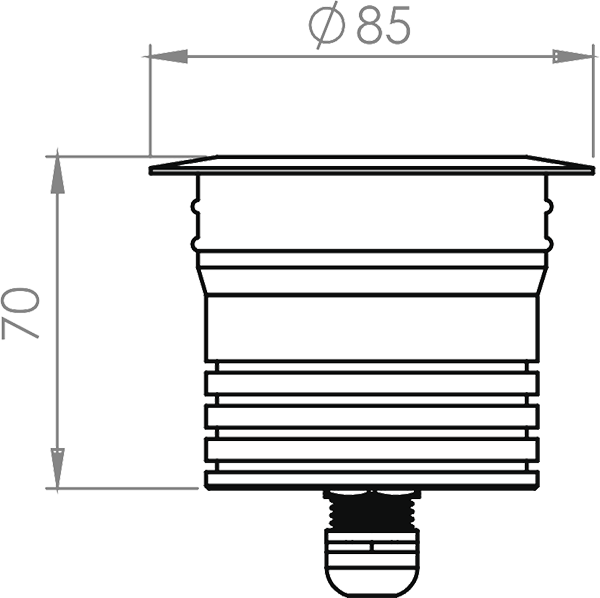

specification drawing

DatasheetIES fileDWG file3DS file
  • complies with the European standard EN 60598-1
  • Appliance class III
  • walkover fixture
  • product’s gross weight including power cablekg 2.50
  • IP68
  • IK10
Installation Recessed for outdoor and underwater applications
Power 9W
Power supply 24 VDC
Lumen output lm
Color 2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Optics 10°, 40°, 60°x15°
Material Aluminium
Finishes Black
Efficiency 82%
Ingress protection IP68
Impact resistance IK10
Power supply unit power supply unit not included
Notes12435
